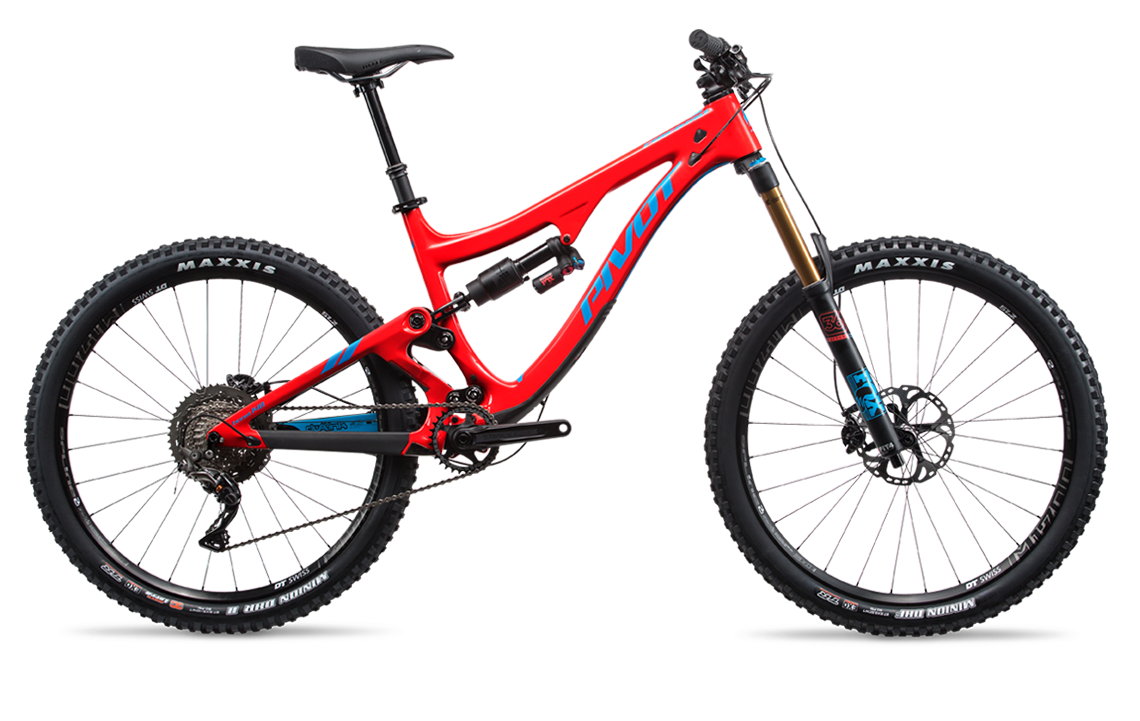

PIVOT FIREBIRD
The Firebird has one goal - to be the fastest
Pivot’s full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 5’2” to 6’9” has a bike that feels perfect and performs at the optimum level for their size
Long-and-low geometry for a confident, and size specific chainstay lengths refine the EWS Podium performance for different sized riders
Phoenix DH-inspired longer dw-link® maximizes the Firebird’s rearward wheel-path for erasing square edge bumps and maximizing control
165mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance
Equipped with 44mm offset 170mm-travel Fox Factory and Performance Series 38 forks
Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options
Compatible with both 29” and 27.5” wheel sizes without compromise thanks to the adjustable geometry for 29” 27.5” or MX wheel setups
Fits tires up to 29x2.6” or 27.5x2.8” wide
12 x 157mm Super Boost Plus rear spacing adds stiffness and control
31.6mm size seatpost match with the Firebird’s short seat tube with deep insertions for longer travel posts
Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world
1.5” headtube provides increased front-end stiffness and tracking
Hassle-free, full-length, internal cable routing
All sizes fit a water bottle inside the front triangle
Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup
Adjustable geometry with a flip chip upper link mount
